ProX 100

Production 3D Printer

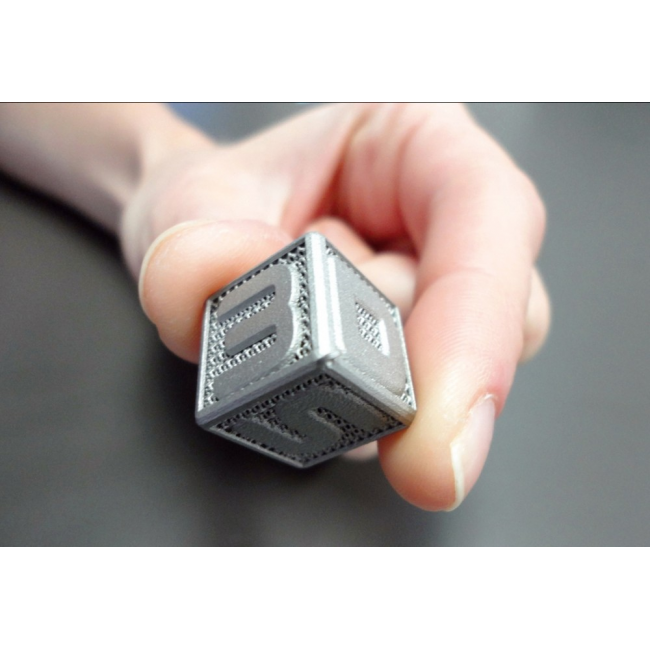

Manufacture small, complex metal parts in hours

The ProX™ range of Direct Metal Printing (DMP) 3D printers builds on 3D Systems' stellar laser sintering capabilities by incorporating 10 years of research and development in metal 3D printing.

The smallest of the ProX DMP line, the ProX 100 is designed as the starting point for people wishing to manufacture small, complex metal parts at high quality and speed using DMP. The ProX 100 features a build volume of 100mm x 100mm x 80mm along with manual material loading and an optional external recycling station. The system supports materials including Maraging 1.2709, Stainless 17-4PH, Ti6Al4V, AlSi12. The ProX 100 also includes 3D Systems' software tools, which are specifically designed to ensure successful direct metal or ceramic manufacturing processes.

About ProX DMP 3D Printers

​

All 3D Systems' DMP printers create chemically pure, fully dense metal and ceramic parts, and they deliver accuracy compatible with EN ISO 2768 (fine) machining tolerances and a repeatability of about 20 microns in all three axes. Materials include stainless steel, tool steel, super alloys, non-ferrous alloys, precious metals and alumina. The outstanding output quality, with high accuracy, finish, reliability and repeatability, and a choice of more than 15 materials, makes these industry-leading machines highly attractive to manufacturers.

The ProX line of DMP 3D printers are providing seamless and intuitive metal 3D printing in a variety of industries: custom dental prostheses, orthopedic implants, tire molds, watch manufacturing, aerospace parts and more. In addition, these systems are wisely used for direct creation of conformal tooling, tooling insert and blow mold production.

Direct Metal production 3D printers are the proven industry standard.

You benefit from our experience in addition to:

• ​Exceptional surface finish and resolution
• Minimal waste of materials
• Able to produce parts not normally manufacturable using traditional methods
• Fast production times Very dense, non-porous parts
• Consistently high accuracy parts even on first-time builds

3D Systems Previews High-Capacity ProX 400 Direct Metal 3D Printer for Tool-Free Manufacturing

3D Systems ProX 100 200 300

3D Systems Specialized Military Scan-to-Print Solutions

​

Build Material:

Stainless steels, Tooling steels, Non-ferrous alloys, Super alloys, Precious metals, Alumina
