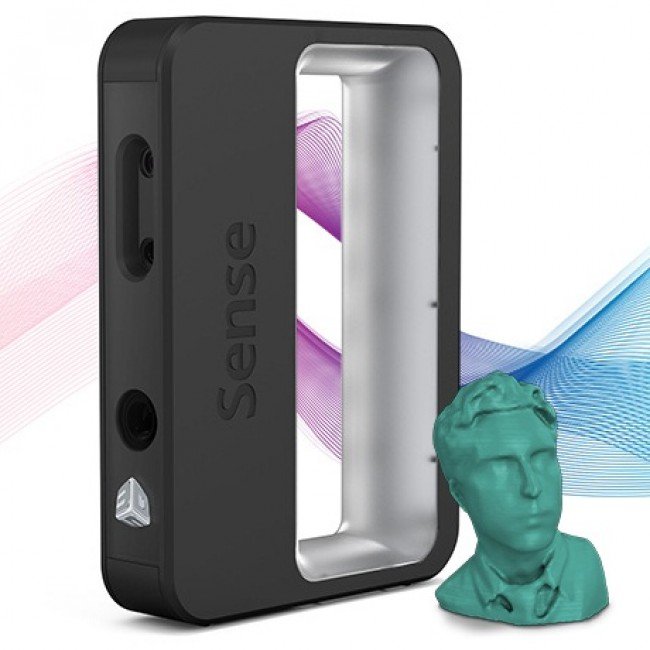

Sense Scanner 3D Portatile

Capture your world in 3D

Discover the power of physical photography with the Sense 3D scanner. Savor every dimension of your favorite memories: Graduation day. Wedding day. Bringing home baby. Holidays. Trips around the world. All with your Sense, all in 3D. Mash-up your world - full integration between the Sense and Cubify Sculpt enables creative freedom like never before.

Big or small, scan it all.Sense has the most versatile scan range in its class with auto-optimized settings for objects large and small. Now with faster scan speed at 25 frames per second with new software upgrade. Zero-in on what matters.Automatic object recognition extracts precise targets from the busiest of backgrounds. New Sense software upgrade improves tracking capabilities for a smooth scan experience.

Edit with ease with quick cropping, enhancement and solidifying tools, Sense can prepare 3D printable files within minutes.Physical to digital and back again. Fully integrated with your Cube 3D printer, the Sense allows scans to upload directly for 3D printing, either at home or through the cloud.

Supported operating systems /Windows 7® (32-bit or 64-bit)/Windows 8® (32-bit or 64-bit)/Mac OS X 10.8 or later

Maximum power consumption /2.25 watts

Scan volume /Min: 0.2m x 0.2m x 0.2m /Max: 3m x 3m x 3m

Dimensions /5.08(w) x 7.08(h) x 1.3(d) inches /12.9(w) x 17.8(h) x 3.3(d) cm

Operating range /Min: 0.35m /Max: 3m

Depth image size /240(w) x 320(h) px

Field of view /Horizontal: 45°/Vertical: 57.5°/Diagonal: 69°

Spatial x/y resolution @ 0.5m /0.9mm

Depth resolution @ 0.5m /1mm

Operating temperature /10-40° C

Data interface /USB 2.0/USB 3.0

Data format /16 bit

Maximal Image Throughput /30 fps

USB Cord Length /213cm

Color Image Size /240(w) x 320(h) px

Hardware recommendations

Intel® Core i5™ or equivalent processor

RAM: 2 GB minimum

1280 x 1024 minimum screen resolution

Color: 32-bit

4 GB available hard disk space

​

Big or small, scan it all - The Sense 3D scanner has the most versatile scan range in its class with auto-optimized settings for objects large and small.

For life on the go - Hand-held mobility gives you the freedom to scan spontaneously, everywhere you go.

Zero-in on what matters - Automatic object recognition extracts precise targets from the busiest of backgrounds, scanning only the object you want.

Mash-up your world - Full integration between the Sense 3D scanner and Cubify Sculpt gives you the creative freedom to combine scans with other favorite designs.

Edit with ease - The Sense 3D scanner is accurate, fast and easy to use. Scans process in seconds and can be cropped, enhanced and solidified for 3D printing in minutes.

Physical to digital and back again - Fully integrated with your Cube 3D printer, the Sense allows scans to upload directly for 3D printing, either at home or through the cloud.

Sense 3D Scanner by 3D Systems
