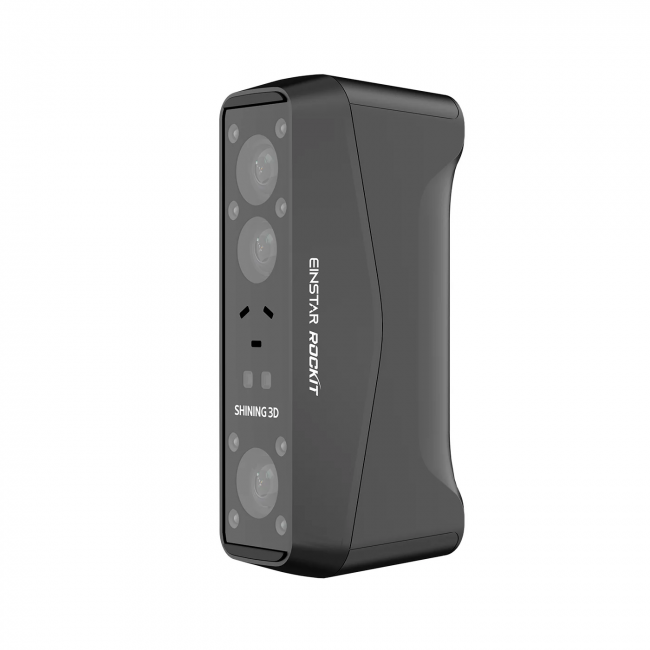

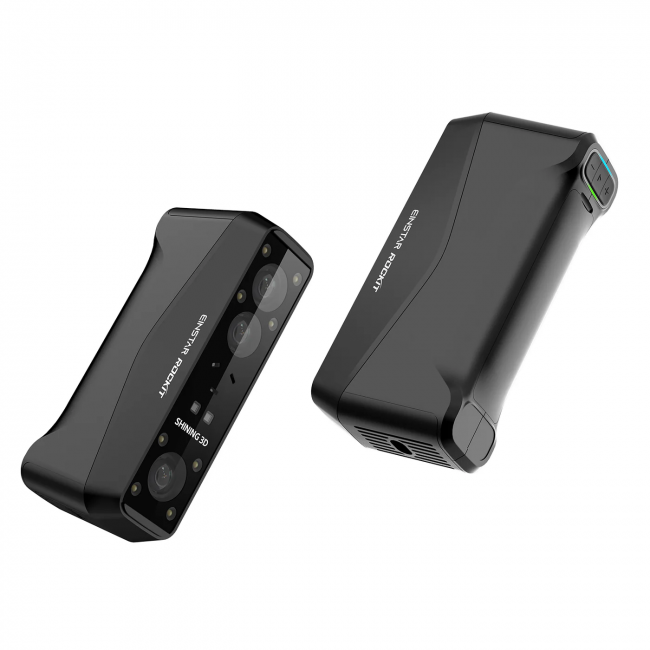

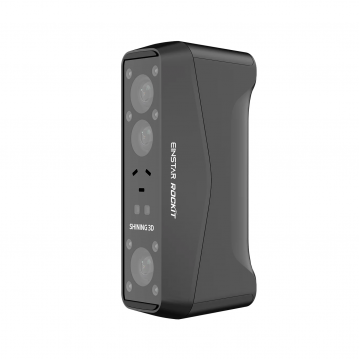

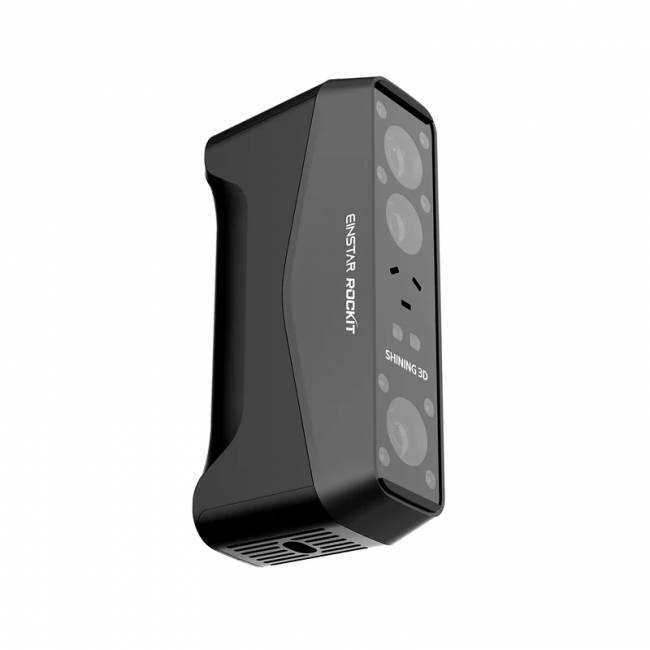

Einstar Rockit 3D scanner

Einstar Rockit 3D scanner​

Product Description:

The Einstar Rockit 3D Scanner is a high-performance, portable, and versatile 3D scanning solution engineered for professionals in design, engineering, manufacturing, and digital preservation. Equipped with dual scan modes—Laser HD and IR Rapid—it delivers unmatched flexibility for capturing complex geometries, intricate details, and full-color textures with precision and ease.

In Laser HD mode, the Rockit uses a hybrid laser system with 38 crossed laser lines and 7 parallel blue laser lines to achieve ultra-fine resolution as low as 0.05 mm. This mode ensures exceptional accuracy and is ideal for detailed industrial parts, mechanical components, and high-precision projects. In IR Rapid mode, it employs an advanced infrared VCSEL system for faster, markerless scanning, perfectly suited for large objects, body scans, or textured surfaces, with a working distance of up to 1400 mm.

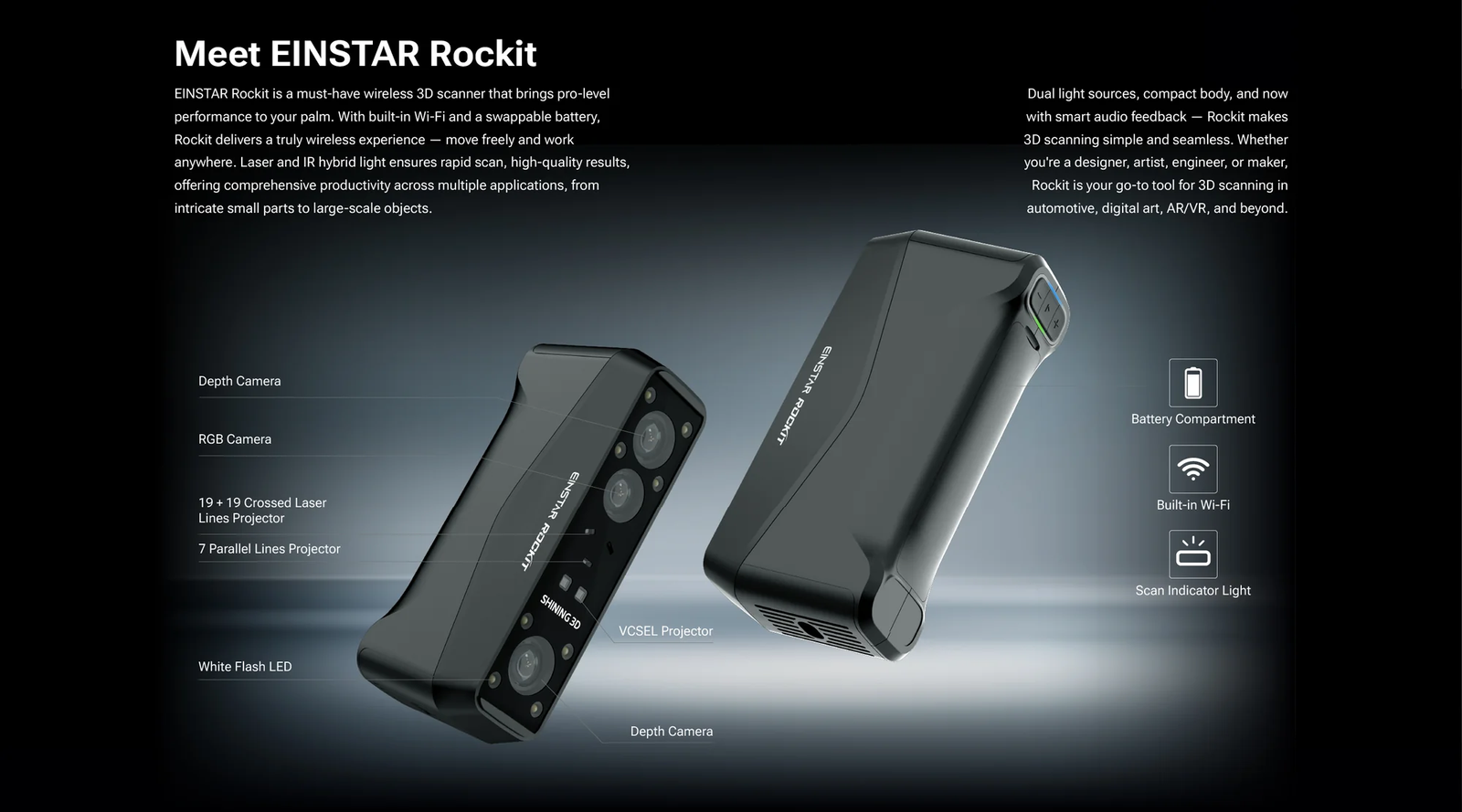

With a maximum field of view of 1170 x 1385 mm, Rockit adapts easily from small objects to large-scale environments. Its dual 2MP 3D cameras and 5MP texture camera capture both geometry and surface color faithfully, producing export-ready 3D data in STL, OBJ, PLY, 3MF, or ASC formats for instant integration into CAD or 3D modeling workflows.

The Rockit achieves remarkable scanning speeds—up to 2.8 million points per second in Laser HD mode and 1.44 million points per second in IR Rapid mode—ensuring quick, efficient, and accurate results even in challenging conditions. It performs reliably outdoors under ambient lighting below 110,000 Lux (Laser HD) or 70,000 Lux (IR Rapid), with an operating temperature range of -10°C to 40°C.

Lightweight yet powerful, the Rockit weighs just 420 g (with battery), making it one of the most compact professional-grade scanners on the market. It features a 5500mA battery, USB Type-C connectivity, and 60W PD 3.0 fast charging for extended field use. Certified under CE, FCC, ROHS, WEEE, FDA, SRRC, and IP50 standards, it ensures safe and stable performance across industrial and creative applications.

Designed for high-end systems, the Einstar Rockit runs best on Windows 11 (64-bit) with an NVIDIA RTX 3060 GPU or higher, 32–64 GB DDR5 RAM, and a 13th Gen Intel Core i7 or above. From precision engineering to reverse design, digital art, and VR/AR content creation, the Einstar Rockit 3D Scanner redefines portability, power, and accuracy in professional 3D scanning.

Technical Specifications:

Scan Modes:

• Laser HD
• IR Rapid

Light Source:

• Laser HD: 38 Crossed Laser Lines (19 + 19) + 7 Blue Parallel Laser Lines
• IR Rapid: IR VCSEL

Resolution:

• Laser HD: 0.05 – 10 mm
• IR Rapid: 0.2 – 10 mm

Scan Speed:

• Laser HD: 2,800,000 points/s
• IR Rapid: 1,440,000 points/s

Working Distance:

• Laser HD (Crossed): 100 – 600 mm
• Blue Laser Parallel Lines: 100 – 400 mm
• IR Rapid: 160 – 1400 mm

Maximum Field of View (FOV):

• Laser HD (Crossed): 545 x 620 mm
• Blue Laser Parallel Lines: 355 x 425 mm
• IR Rapid: 1170 x 1385 mm

Alignment Modes:

• Laser HD: Global Marker / Markers
• IR Rapid: Global Marker / Markers / Features / Texture / Hybrid

Minimum Scan Volume:

• Laser HD: 5 x 5 x 5 mm
• IR Rapid: 50 x 50 x 50 mm

Camera Resolution:

• 3D Cameras: 2 MP × 2
• Texture Camera: 5 MP

Output Formats:
STL, OBJ, PLY, 3MF, ASC

Laser Class:
Class 2

Outdoor Operation Limit:

• Laser HD: ≤110,000 Lux
• IR Rapid: ≤70,000 Lux

Operating Conditions:

• Temperature: -10°C to 40°C

Interface & Power:

• USB Type-C
• Battery: 5500mA
• Charger: 60W PD 3.0

Dimensions:
130 × 37 × 61 mm (5.12 × 1.46 × 2.40 in)

Weight:

• With Battery: 420 g (0.92 lbs)
• Without Battery: 348 g (0.77 lbs)

Certifications:

• CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
• Recommended System Configuration:
• OS: Windows 11 Professional 22H2 (64-bit)
• GPU: NVIDIA GeForce RTX 3060 Laptop GPU or above
• VRAM: 6 GB or more
• RAM: Minimum 32 GB DDR5 dual-channel (Recommended: 64 GB)
• Processor: 13th Gen Intel Core i7-13700H or higher
• Interface: USB 3.0
