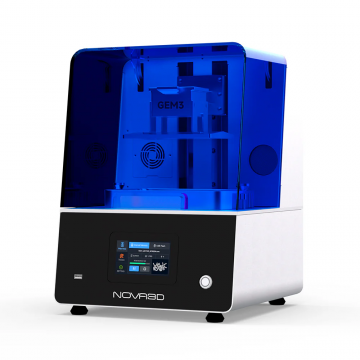

NOVA3D GEM3 Dental 3D Printer
NOVA3D GEM3 Dental 3D Printer
Ultra-Compact MSLA Printer for Chairside Workflow

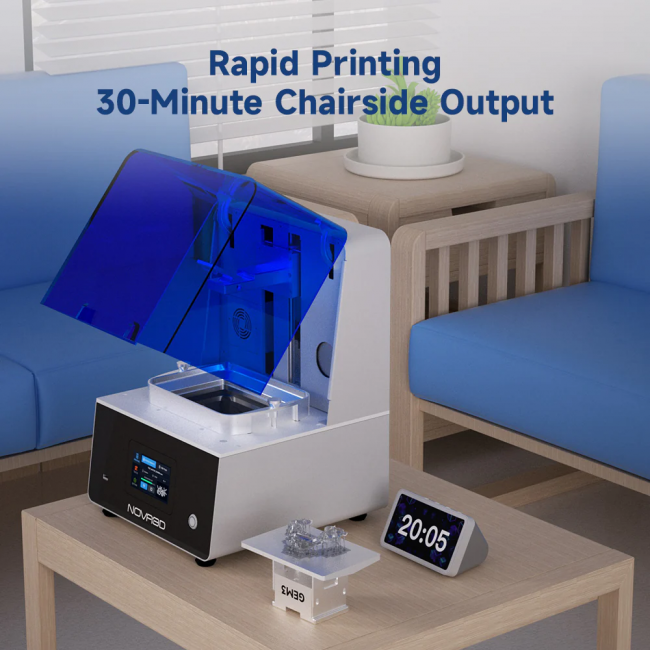

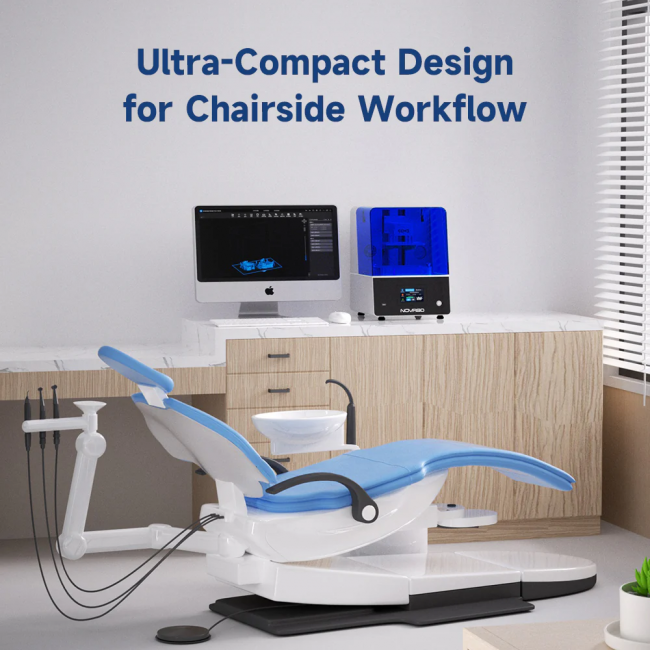

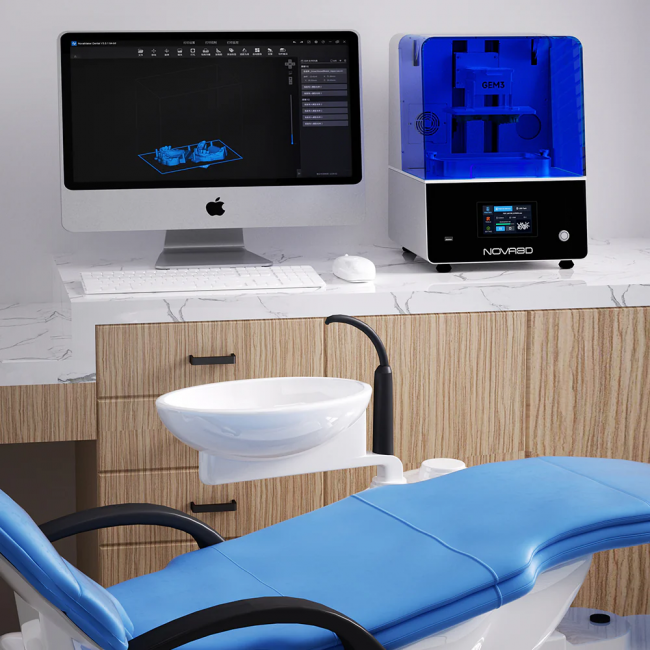

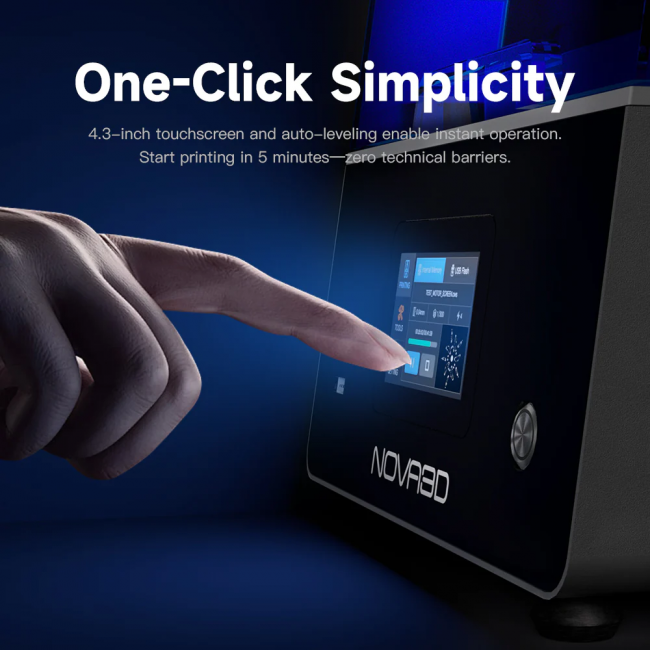

The NOVA3D GEM3 Dental is a high-precision MSLA 3D printer designed for dental clinics. Its ultra-compact (<20kg) design fits seamlessly into chairside workflows, maximizing efficiency. One-click operation via a 4.3-inch touchscreen and auto-leveling allows printing in under 5 minutes.
Exceptional light uniformity ensures precise models: >93% of deviations within 50μm, 99% within 100μm.

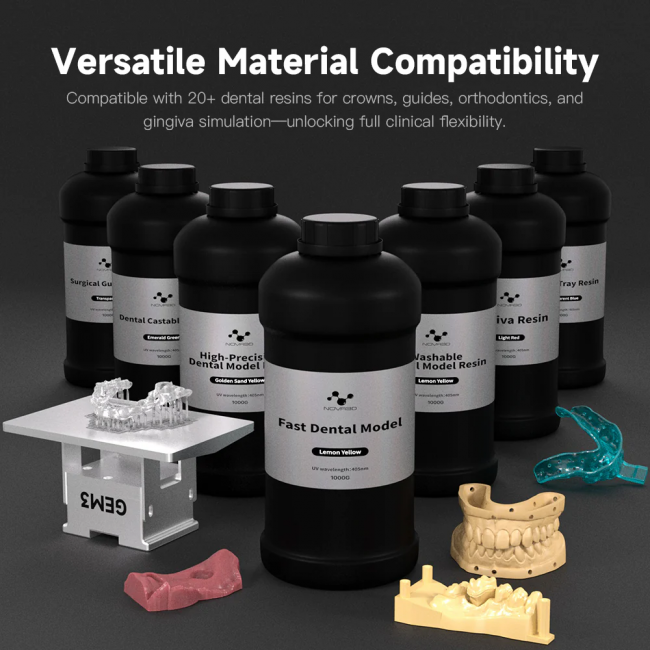

Compatible with 20+ dental resins for crowns, guides, orthodontics, and gingiva simulation.
Closed-loop temperature control prevents warping, and whisper-quiet operation (<50dB) enhances patient comfort.
Technology Note: The GEM3 uses a high-intensity 405 nm LED array with a high-res LCD mask, delivering MSLA precision, smooth surfaces, and reliable performance across the build plate.
Scan-to-CAD comparison shows over 93% of deviations within 50μm, and 99% within 100μm.
Technical Specifications
- Light Source: 7th-gen COB + Light homogenizer, 4th-gen air-cooling
- Optical Power: 5000 μW/cm² | UV Wavelength: 405 nm
- Resolution: 9072×5120 | Pixel Size: 17×17 μm | Build Volume: 154×87×120 mm
- Layer Thickness: 20–200 μm | Printing Speed: 70 mm/h
- Motion: Industrial ball screw, Industrial Stepper Motor
- Power: Input 100–240V ~ 50/60Hz 2A | Output 24VDC/6.25A
- Printer Dimensions: 335×315×436.3 mm | Net Weight: 15.5 kg | Gross Weight: 20.5 kg
- Operating Temp: 20–30°C | Software: NovaMaker, ChituBox, Lychee, Tango | File Format: .stl, .obj
Write a review
Your Name:Your Review: Note: HTML is not translated!
Rating: Bad Good
Enter the code in the box below:
Technical Specifications
Light Source
- 7th-gen COB + Homogenizer
- 4th-gen integrated air-cooling system
- Optical Power: 5000 μW/cm²
- Wavelength: 405 nm
Exposure System
- Resolution: 9072 × 5120
- Pixel Size: 17 × 17 μm
- Build Volume: 154 × 87 × 120 mm
Speed
- Layer Thickness: 20–200 μm
- Printing Speed: 70 mm/h
Motion System
- Industrial ball screw
- Industrial stepper motor
Power
- Input: 100–240V ~ 50/60Hz 2A
- Output: 24V DC / 6.25A
3D Printer
- Printer Size: 335 × 315 × 436.3 mm
- Packing Size: 418 × 438 × 610 mm
- Net Weight: 15.5 kg
- Gross Weight: 20.5 kg
- Operating Temp: 20–30°C
Software
- Slicers: NovaMaker, ChituBox, Lychee Slicer, Tango Slicer
- File Formats: .stl, .obj
