ProJet 3500 CPXMax

Professional 3D Printer

The ProJet 3500 CPXMax produces mirror standard wax casting patterns with outstanding precision and micro-detail.

An expanded print envelope increases total throughput and accommodates larger-sized parts.

The high-capacity ProJet 3500 CPXMax offers larger high-definition prints and greater productivity. The RealWax pattern performance rivals injected wax patterns in existing lost-wax casting processes and equipment. Users everywhere can benefit from a level of increased throughput and part size, feature detail,and surface quality only possible with ProJet printers.

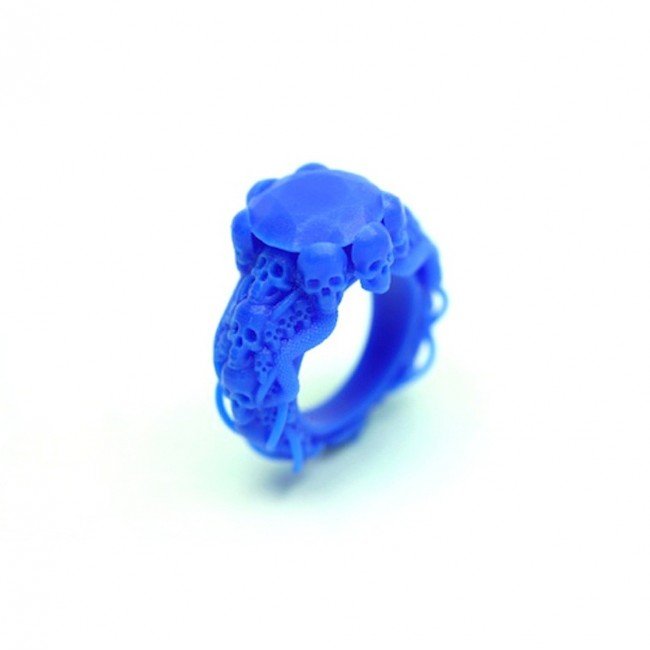

Create remarkable, high quality wax molds for investment casting.

Enjoy the easy and intuitive operation of touchscreen controls and remote tablet and smart phone connectivity.

• Max Throughput
• Max Definition
• Max Volume

ProJet 3500 Series Professional 3D Printers

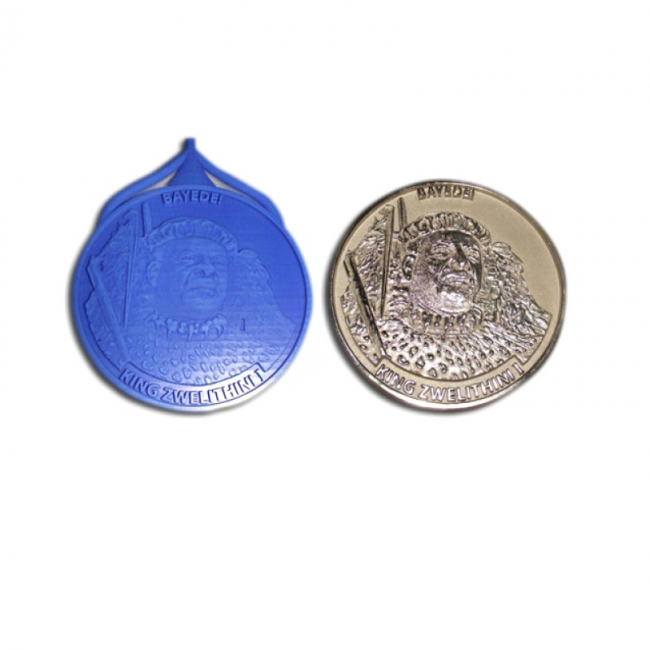

Investment Casting with ProJet 3500 Wax Patterns

3D Printing Process: MJP

​

Build Material

VisiJet® M3 Hi-Cast

VisiJet M3 Hi-Cast Material provides extreme resolution performance for high-end lost-wax casting of fine-detail items such as jewelry and micro-medical and electrical devices. Used exclusively in the ProJet CPX 3500 3D printers, the M3 Hi-Cast material sets the standard for feature definition, accuracy and precision.

Support Material

VisiJet S400 Wax

VisiJet S400 Support Material is used in all RealWax™ pattern productions on the ProJet 3500 CP and ProJet 3500 CPX models of 3D Printers. This material is a non-toxic wax support material that is dissolvable and allows for removal from delicate wax parts without damage to pattern surfaces or fine features.
