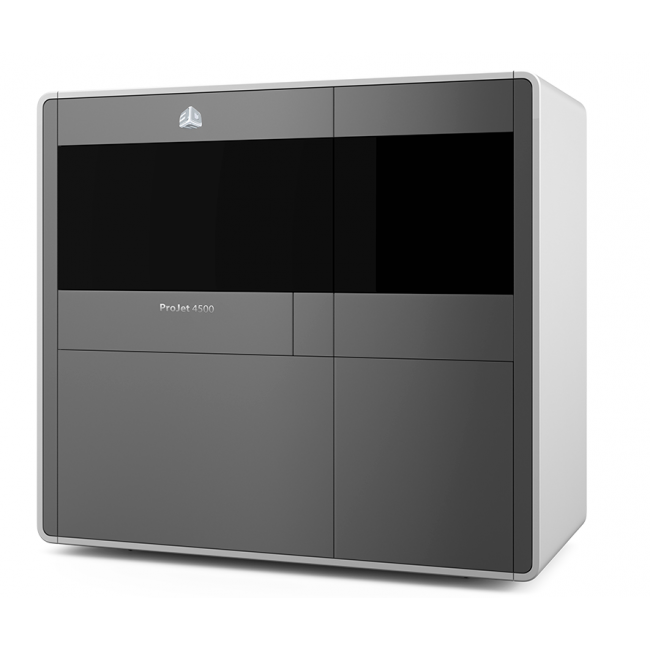

ProJet 4500

Professional 3D Printer

The industry’s only photo realistic full-color plastic 3D printer Combine the Power of Vibrant Full Color With Durable Plastic Materials

The ProJet® 4500 gives you the power to make ready-to-use, flexible, strong parts, colored pixel by pixel, with superior surface quality. This office-friendly 3D printer is quick and efficient, and features intuitive operation controls, so you can ensure high productivity and cut operating costs.

Combine outer beauty with inner toughness and have durable, full-color plastic parts right out of the printer from the ProJet 4500. Using ColorJet printing technology and the VisiJet® C4 Spectrum™ plastic material, the ProJet 4500 allows you to quickly create true-to-life prototypes of your end product, accurately display vital features, and produce high-resolution, customized end-use products.

The ProJet 4500 prints fast, generates minimal waste, requires no supports and delivers ready-to-use, full-color, functional parts and assemblies without post-processing or painting. This category-defining 3D printer is ideal for consumer products, home furnishings, healthcare, toys and collectibles companies, and completely shifts the paradigm for professionals engaged in architectural modeling, marketing communications, fashion design and more. Safe for office, easy-to-use, sustainable to operate and fast to print on, the ProJet 4500 is economical and comes with fully integrated material recycling for greater yield and better total material usage.

ProJet 4500

Resolution                                                                     600 x 600 DPI

Color Continuous                                                          CMY

Minimum Feature Size                                                   0.004 in (0.1 mm)

Layer Thickness                                                             0.004 in (0.1 mm)

Vertical Build Speed                                                       0.3 in/hour (8 mm/hour)

Prototypes per Build                                                         18 models, 75 mm in diameter

Net Build Volume (xyz)                                                   8 x 10 x 8 in (640 in3)

                                                                                      203.2 x 254 x 203.2 mm (10,487 cm3)*

Build Material                                                                VisiJet C4 Spectrum

Automated Setup and Self Monitoring                                      •

Core Recycling                                                                         •

Integrated Part Cleaning                                                           •

Integrated Materials                                                                  •

Intuitive Control Panel                                                              •

E-mail Notice Capacity                                                              •

Tablet/Smartphone Connectivity                                                •

Print3D App                                                                   Remote monitoring and control from tablet, computers and smartphones

Input Data File Formats Supported                                 STL, VRML, PLY, ZPR

Client Operating System                                                 Windows® 7 and Windows® Vista

Operating Temperature Range                                        55-75 °F (13 - 24 °C)

Operating Humidity Range                                              20-55 % - non-cond.

Dimensions (WxDxH)

3D Printer Crated                                                              75 x 48 x 68 in (190 x 122 x 172 cm)

3D Printer Uncrated                                                          64 x 31.5 x 60 in (162 x 80 x 152 cm)

Weight

3D Printer Crated                                                              750 lbs (340 kg)

3D Printer Uncrated                                                          600 lbs (272 kg)

Electrical                                                                        100-240 V, 15-7.5 A

Office Compatibility                                                                    •

Certification                                                                    CE, CSA

ColorJet Printing (CJP)

ColorJet Printing (CJP) involves two major components: core and binder. Core material is spread in thin layers over the build platform with a roller. After each layer of core material is spread, color binder is selectively jetted from inkjet print heads over the core layer, causing the core to solidify. The build platform lowers with each subsequent layer of core and binder until the model is complete.

Make your design stand out. Communicate in strong, full-color plastic.

• Trust your concept models and end-use parts – The ProJet 4500 produces long-lasting plastic parts.

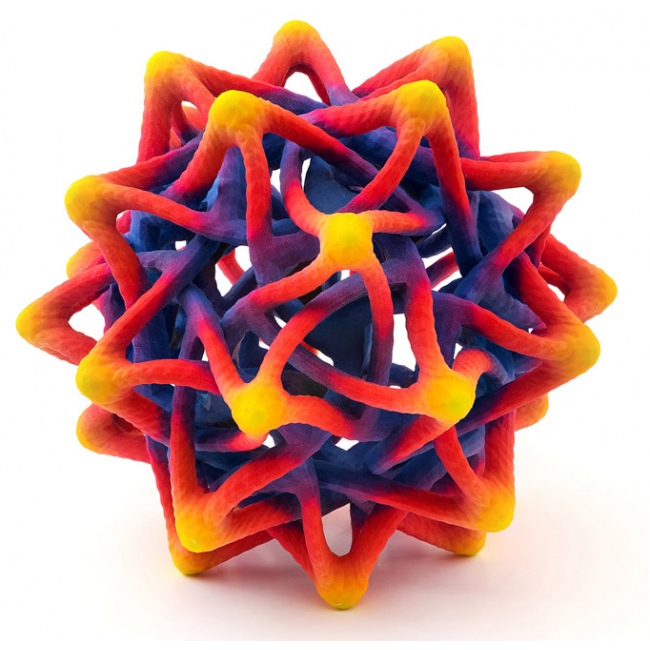

• Make models as brilliant as you are – Present every detail of your part, utilizing almost one million colors and superior surface finish capabilities.
• Create parts faster – The ProJet 4500 features fast print speeds, and parts are ready to use right out of the printer, no post-processing or painting required.
• Conserve materials – The ProJet 4500’s material recycling capabilities, and its ability to produce parts that do not require supports, make it economical and eco-friendly.
• 3D print in your office – From end to end, the ProJet 4500 is a fully integrated, clean and intuitive 3D printing solution.

Features:

• CMY binders embed color pixel-by-pixel, creating almost one million unique color possibilities
• Uses flexible and strong VisiJet C4 Spectrum plastic materials for durable models
• Features fast print speeds, and no post-processing is required • All-in-one system with automatic material recycling
• No water hookups and no harsh chemicals required

ProJet® 4500 Product Video

Stunning Architectural Models by the ProJet 4500 3D Printer

Video Games Made Real: Printing Spacecraft on the ProJet 4500

3D Printing Process: CJP

VisiJet® C4 Spectrum™

VisiJet C4 Spectrum Material Properties                        Heat-Cured Plastic Composite

Properties                                                        Condition                            Value

Tensile Strength                                               ASTM D638                        24.8 MPa

Tensile Modulus                                               ASTM D638                        1600 MPa

Elongation at Break                                          ASTM D638                            3.6 %

Flexural Strength, Final                                     ASTM D638                          36.5 MPa

Flexural Strength, Yield                                     ASTM D638                         24.4 MPa

Flexural Modulus                                              ASTM D790                         1125 MPa

Hardness Shore D                                            ASTM D2240                           79

Heat Distortion Temperature @ 0.45 MPa           ASTM D648                            57 °C
