Anycubic Photon Mono M7 3D Printer

The Anycubic Photon Mono M7 redefines resin 3D printing speed and precision. Equipped with a 10.1-inch monochrome LCD screen with 14K resolution (13312 × 5120), this printer delivers incredible detail and crisp edges in every model. Its upgraded LightTurbo 3.0 system ensures consistent light uniformity and optimal curing performance.
With a maximum printing speed of 150mm/h and a build volume of 223 × 126 × 230 mm, the Photon Mono M7 provides both speed and capacity, perfect for professional creators and hobbyists. Intelligent workflow-assisted printing and easy 4-point leveling make operation smooth and efficient.
The M7 supports multiple resin types including high-speed, water-washable, ABS-like, and eco-friendly plant-based resins. Dual linear rails guarantee stable motion for ultra-smooth surfaces. With its large build space and next-gen LightTurbo system, Anycubic Photon Mono M7 lets you go beyond the speed limit of resin 3D printing.

Download Anycubic Mono M7 User Manuals PDFs

Technical specifications:

• Printing volume: 223 × 126 × 230 mm (6.5L)
• Print speed: ≤90 mm/h (standard resin), ≤150 mm/h (high-speed resin)
• Layer height range: 0.01 – 0.15 mm
• X/Y axis resolution: 16.8 × 24.8 μm
• Light source: COB light source + Fresnel lens + Light Uniformity Algorithm
• Light intensity: 4500 ±10% μW/cm²
• Material compatibility: High-speed, water-washable, standard, ABS-like, and plant-based resins
• Build platform: Laser-engraved build plate
• Z-axis: Dual linear rails with 10 μm precision
• Release film: Improved ACF film
• Resin vat: ≤1L
• Machine leveling: Leveling-free
• Power supply: 135W
• Power loss resume: Not supported
• Protection film: Replaceable scratch-resistant film
• Resin auto-fill unit: Not supported
• Dynamic temperature control vat: Not supported
• Slicing software: Photon Workshop, Chitubox, LycheeSlicer (Q4)
• File transfer: USB / WiFi / LAN (2025 Q1)

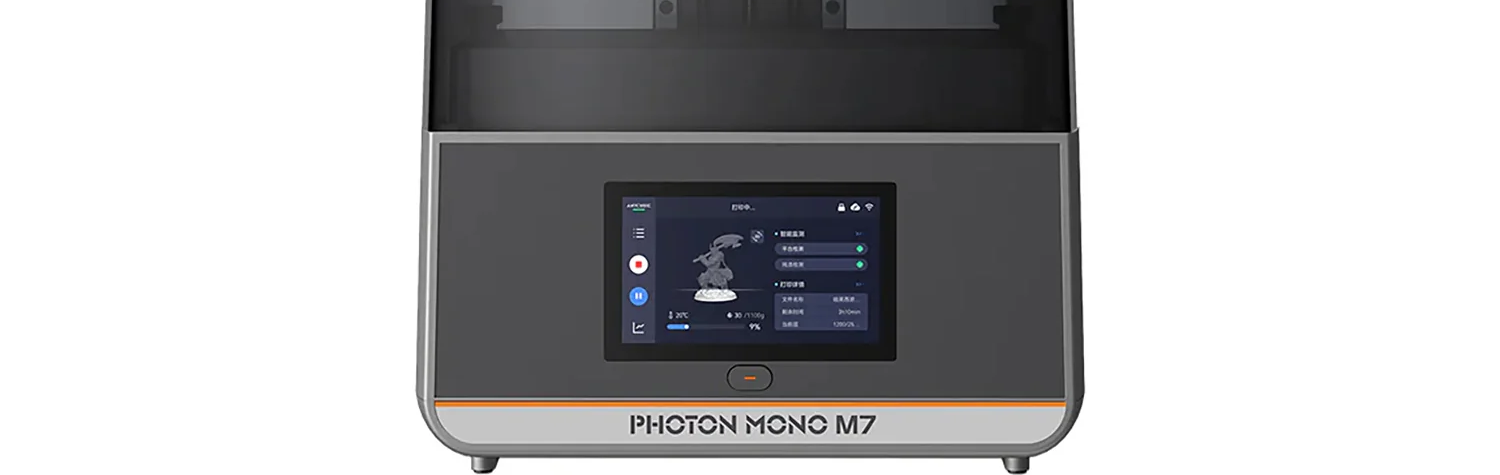

• Operating screen: 4.3" touchscreen
• Air purifier: Optional accessory
• LCD screen: 10.1" monochrome LCD, 14K resolution
• Anycubic app: Supported
• Multilingual support: EN / CN / DE / FR / IT / ES / RU / JP
• Machine weight: 12 kg
• Package weight: 13 kg
• Product dimensions: 312 × 315 × 520 mm
• Packaging dimensions: 620 × 395 × 395 mm

Technical specifications:

• Printing volume: 223 × 126 × 230 mm (6.5L)
• Print speed: ≤90 mm/h (standard resin), ≤150 mm/h (high-speed resin)
• Layer height range: 0.01 – 0.15 mm
• X/Y axis resolution: 16.8 × 24.8 μm
• Light source: COB light source + Fresnel lens + Light Uniformity Algorithm
• Light intensity: 4500 ±10% μW/cm²
• Material compatibility: High-speed, water-washable, standard, ABS-like, and plant-based resins
• Build platform: Laser-engraved build plate
• Z-axis: Dual linear rails with 10 μm precision
• Release film: Improved ACF film
• Resin vat: ≤1L
• Machine leveling: Leveling-free
• Power supply: 135W
• Power loss resume: Not supported
• Protection film: Replaceable scratch-resistant film
• Resin auto-fill unit: Not supported
• Dynamic temperature control vat: Not supported
• Slicing software: Photon Workshop, Chitubox, LycheeSlicer (Q4)
• File transfer: USB / WiFi / LAN (2025 Q1)
• Operating screen: 4.3" touchscreen
• Air purifier: Optional accessory
• LCD screen: 10.1" monochrome LCD, 14K resolution
• Anycubic app: Supported
• Multilingual support: EN / CN / DE / FR / IT / ES / RU / JP
• Machine weight: 12 kg
• Package weight: 13 kg
• Product dimensions: 312 × 315 × 520 mm
• Packaging dimensions: 620 × 395 × 395 mm

Anycubic Photon Mono M7

Photon Mono M7 - What's in the box:

• Print Platform * 1
• Resin Vat * 1
• Manual * 1
• Screen Protector Kit
• WiFi Antenna
• Hex Key Set
• Protective Equipment
• Filter * 5
• Scrapers * 2
• Leveling Paper
• USB Drive * 1
• Power Cord

​
