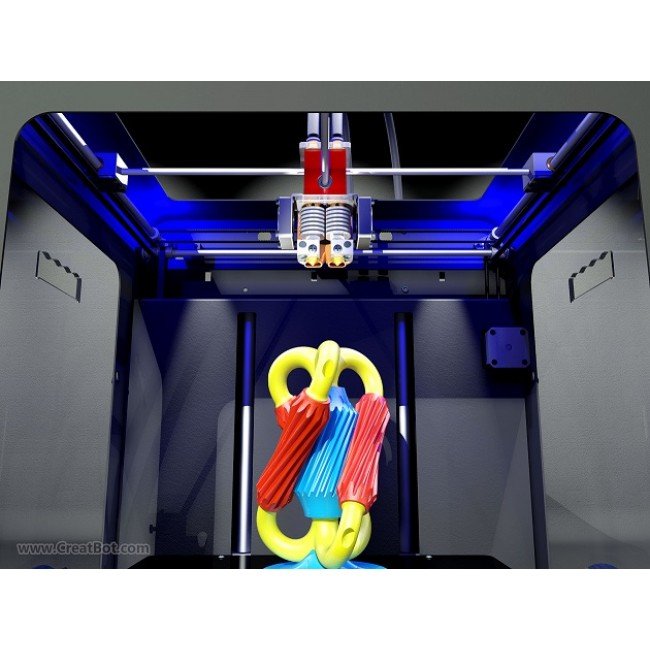

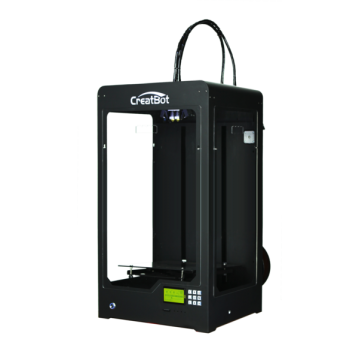

This solid constructed 3D Printer has dual print heads, semi enclosed chamber with see through walls, a heated glass print bed and a Bowden style extruder. The extruder has the stepper motors positioned at the back of the machine which results in a light weight print head assembly enabling high speed 3D Printing. The CreatBot DX prints beautifully in PLA and ABS as well as other filaments including soluble HIPS and PVA. A great machine for engineering and education, stacking up multiple objects for production work, large architectural models, sculpture, jigs and fixtures.
· All metal chassis
· Smart adjustable extruder
· Automatically shutdown
· Multi-function keypad
· Gear motors feeder
· Ceramic panel hot bed
· Metal hot bed tray
· Large build volume of 300 x 250 x 520 mm
· High resolution
· Filament detection system
· Print in temperatures up to 400
· Continued print in case of power loss
· All enclosed build space
All metal chassis
A 3D printer requires a certain weight to insure stable operation. This is why a all metal chassis is the best way to go when it comes to 3D printing.
Smart adjustable extruder
CreatBot extruders have an intelligent cooling system, this ensures that the filament is feeding at the optimal temperature all the time. The height adjustable nozzles allows you to align your two nozzles very quick and easy. Perfect when you want to print with support, different material or just two colors. All CreatBots from 3D Prima comes with dual extruders as standard.
Your CreatBot is equipped with a power management module. When the print is finished and there is no action taken within 5 minutes the printer will shut down. Very useful and very energy efficient.
Multi-function key pad
CreatBot has a multi-function keyboard. This makes for very easy handling and direct access to many of the most used functions, including Z shaft up/down, heating/cooling of hot bed, pause, resume print, browse the SD card and more.
Gear motors feeder
A gear motor can produce more torque compared to the general stepper motor, this ensures that there is a smooth feeding of the filament at all times and that retraction is perfect.
Ceramic panel hot bed
On top of a silica heating plate there is a stunning ceramic hot bed which is more expensive then glass but also provides a better heating distribution and a more even heat. The ceramic plate is very smooth and provides a very good adhesion.
Metal hot bed tray
An all metal hot bed tray makes for a very stable print platform which in turn improves stability.
Large build volume
The DX+ boasts with its impressive build volume of 300 x 250 x 520 mm, that is more than enough for most makers. This means that you can print your creations in 52 cm height and with a resolution of 0.04 mm.
Filament detection system
If you should run out of filament during a print, dont worry. The printer will go into pause mode and let you change the filament then you just hit resume, easy!
High temperature prints
The nozzles can operate in temperatures up to 400 degrees Celsius. This means that you can use a wide range of different filaments. It also provides you with a very stable temperature during printing.
If you should have an unexpected power loss the printer remembers the last known position, stores it, lowers and retract the filament. When the power comes back on you can continue to print.
All enclosed build space
On the CreatBot you have a totally enclosed build space which prevents large prints from being cracked or warped.
PRINTING TECHNOLOGY FFF -Fused Filament Fabrication
EXTRUDERS 2 Dual Extruders
BUILD VOLUME 300*250*520mm
LAYER RESOLUTION 0.04 mm
PRINT SPEED Up to 120 mm/s
POSITION PRECISION XYZ Axis 0.01 mm
LCD DISPLAY Yes, with key board
OPERATING NOZZLE TEMPERATURE MAX 400° C
PLATFORM TEMPERATURE MAX 120 ° C
SUPPORTED MATERIALS PLA, ABS, HIPS, PVA, PETG, Woodfill and others
FILAMENT DIAMETER 3.0 mm
CONNECTIONS USB and SD card
CHASSI All steel
SOFTWARE INCLUDED CreatBot multi-language version
FILE FORMAT STL, OBJ, GCode, Amf
PRODUCT DIMENSION 420*380*790mm
NOZZLE DIAMETER 0.4 mm
SUPPORTED OS Windows, Linux, Mac OS, OSX
SHIPPING WEIGHT 55Kg
